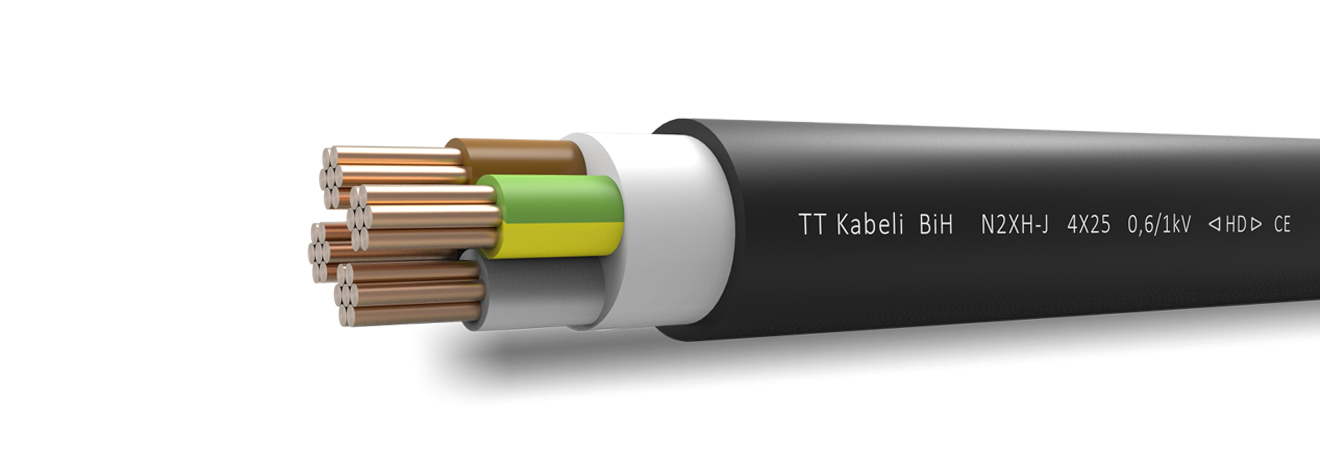

N2XH

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and HFFR sheathed

Application

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc., where fire prevention safety measures are requested, for eleveted electricity and thermic strains.

Construction

Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: XLPE compound, type 2XI1
Bedding: Extruded elastomere or plastomere LSZH compound or plactic tape
Sheath: LSZH compound, type HM4

Technical characteristics

Voltage rating (Uo/U): 0,6/1 kV
Testing voltage: 4 kV
Min. temp. for cable laying: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Min. bending radius: single-core – 15D; multicore – 12D
CPR class: B2ca – s1,d1,a1
UV resistent: Yes
Low smoke emitting: EN 61034
Halogen-free: EN 60754
Fire retardant: EN 60332-3




Country: Austria, Croatia, Germany, Poland, Serbia
Industry: Building & Construction, Data Centres, Transmission, Distribution & Power Networks
Standard: HD 604 S1, IEC 60502-1, VDE 0276-604
Type: Data centre cables, Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneCPRIECREACHROHS
