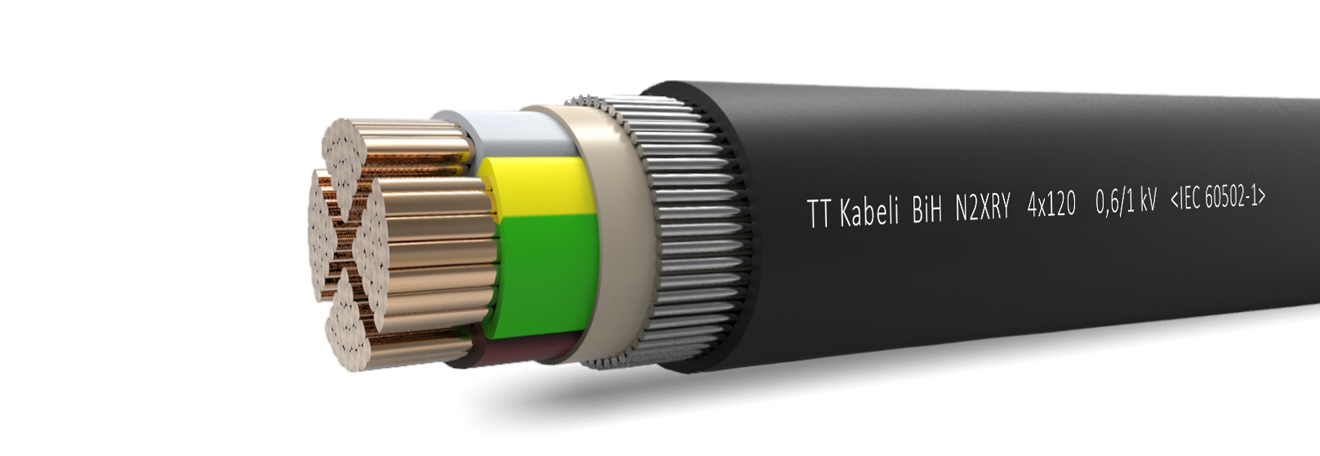

N2XRY

LV (0,6/1 kV) power cables with XLPE insulation and PVC sheath, steel or Al wires armored

Application

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

Construction

Conductors: CU rope
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Armour: Galvanized steel wires or Al wires for
single-core cables
Sheath: PVC compound

Technical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): Single-core 15D;
multi-core 12D
Min. laying temperature: -5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Austria, Germany, Poland
Industry: Building & Construction, Mining, Drilling & Tunnelling, Transmission, Distribution & Power Networks
Standard: IEC 60502-1
Type: Armoured Cable – SWA & AWA, Industrial Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneIECREACHROHS
