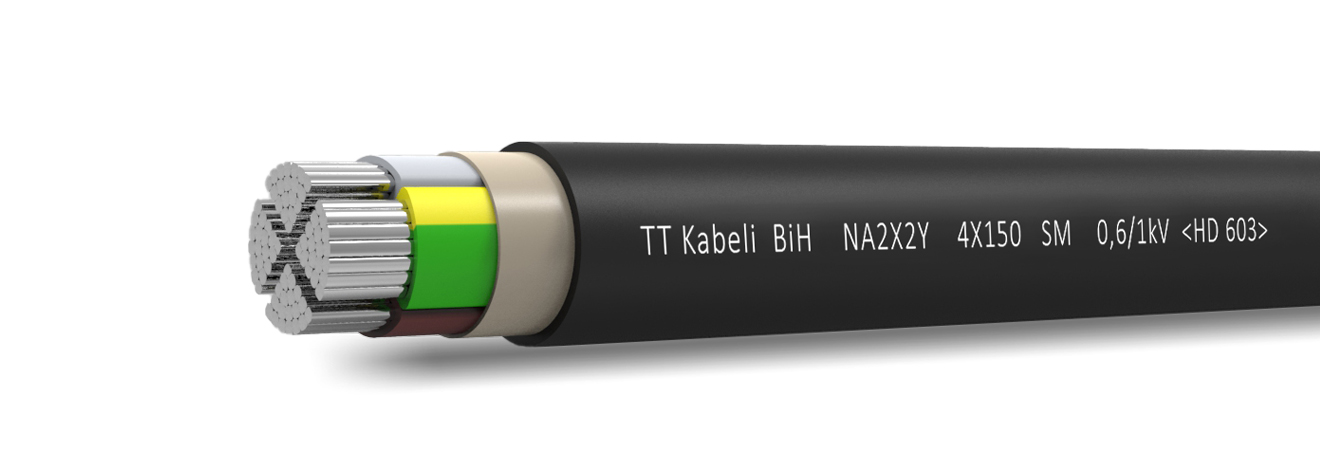

NA2X2Y
Power cable 0,6/1 kV with Al conductors, XLPE insulated and HDPE sheathed
Application
In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.
Construction
Conductors: Al, class1 or 2 according to EN 60228
Insulation: XLPE compound DIX 3
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: HDPE compound DMP 2
Technical characteristics
CPR class: Fca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C
Country: Austria, Germany, Poland
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1, VDE 0276-603
Type: Industrial Cable, Power Network & Local Distribution Cable
