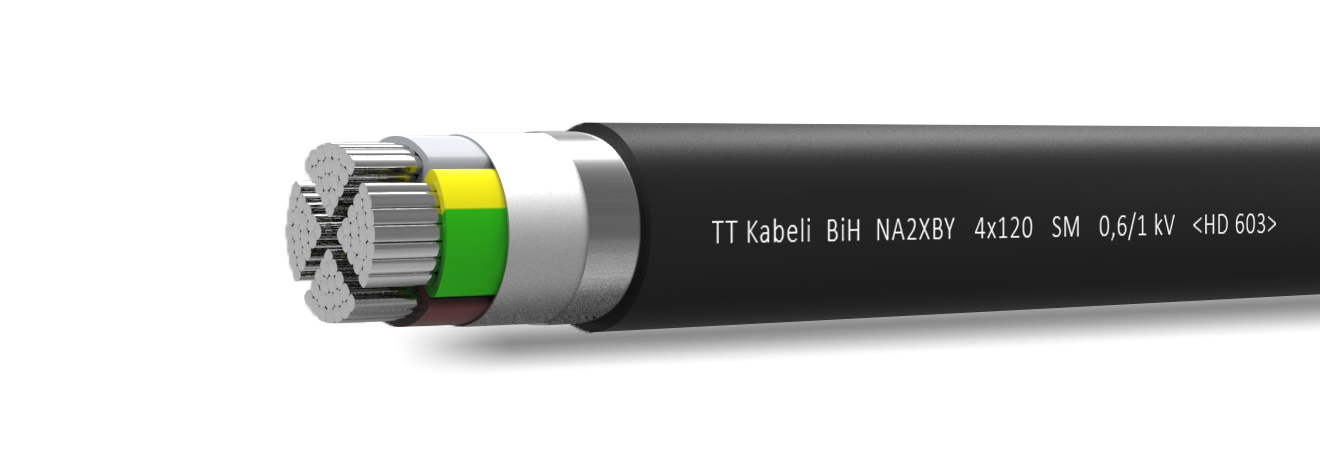

NA2XBY

Power cable 0,6/1 kV with Al conductors, XLPE insulated and PVC sheathed

Application

Distribution and signal power cable for static application, mostly in ground, but also within and outside facilities, in cable canals, in concrete. Used in electric power plants and other electric plants, in industry, metropolitan networks and for connection of signalling devices in industry, traffic and similar, where there is a possibility of fire (hospital, school, work place, shopping center, etc.). Resistant to mechanical loads, able to sustain heavier mechanical tensile strains, could be laid slantingly or vertically, same as on grounds exposed to land-sliding.



Construction

Conductors: Al, class 1 or 2, according to EN 60228
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere compound or plastic tape
Armour: two galvanized steel tapes
Sheath: PVC compound



Technical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C




Country: Austria, Germany, Poland
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1
Type: Armoured Cable – SWA & AWA, Industrial Cable, Power Network & Local Distribution Cable
