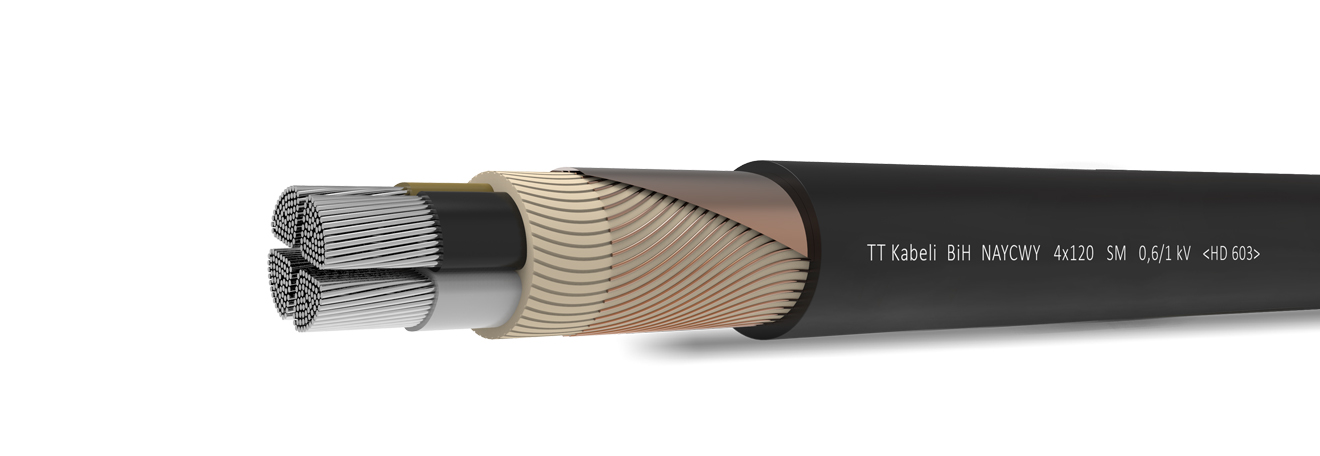

Power cable 0,6/1 kV with Al conductors, PVC insulated and sheathed


Distribution power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where there is a danger of possible mechanical damages, but where the cable is not exposed either to systematic mechanical stress or heavier tensile strain. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Concentric conductor can be used as neutral, protective or earth connection, and in situations where the insulation might be roughly damaged by some metal object, it acts as protection against contact voltage. Corrugated, concentric conductor construction enables establishing of several cable connections without cutting of conductor.



Conductors: Al, class 1 or 2, according to EN 60228
Insulation: PVC compound
Bedding: Extruded elastomere or plastomere compound or plastic tape
Concentric conductor: Cu wires (wave-form) with counter helix of Cu tape
Sheath: PVC compound


Technical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D; multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Austria, Germany, Poland
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: EN 60332-1-2, HD 603 S1, IEC 60502-1, VDE 0276-603
Type: Industrial Cable, Power Network & Local Distribution Cable, Screened cables
Conformitè EuropëenneIECREACHROHS
