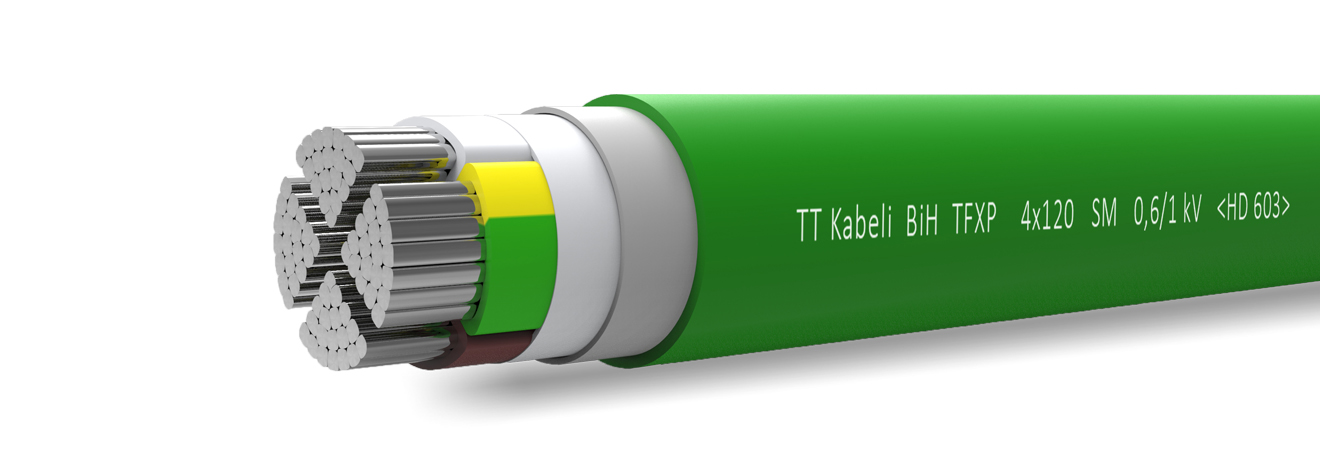

TFXP

Power cable 0,6/1 kV with Al conductors, XLPE insulated and HDPE sheathed,with protective PVC outer sheath

APPLICATION

This cable is used as a power distribution cable in power stations, industrial installations and switchgears as well as in local mains. Can be laid directly in ground but on sand base to avoid cable damaging. Cable laying must be performed only by qualified personell and according to national standards and regulations. For fixed installation underground, in interior premises, cable ducts, in the open air, in water – as permitted by the local building regulations – under severe mechanical stressing during installation and operation

Construction

Conductors: . Cu, class 2 according to EN 60228
Insulation: : XLPE compound DIX 3
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Inner sheath: HDPE compound
Sheath: PVC compound, green color

Tehnical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): multicore – 12D
Min. laying temperature: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Fire properties: EN 60332-1-2


Country: Denmark, Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1, p.5M
Type: Industrial Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneIECREACHROHS
