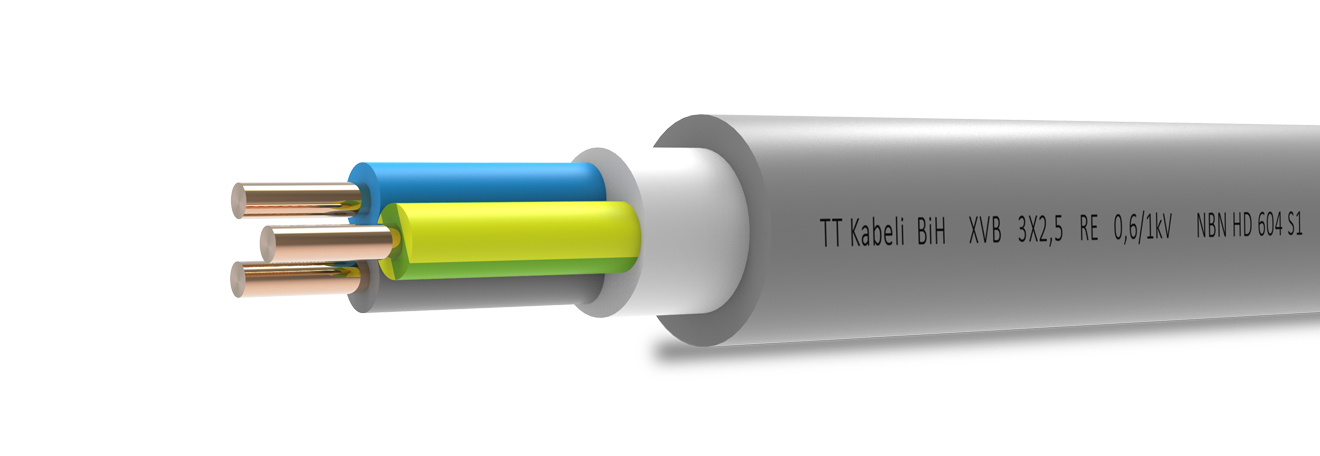

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed


Installation cable with XLPE insulation and PVC outer sheath, for domestic and industrial installations. These cables may be laid indoors and outdoors, in soil (if protected by a conduitsysteom or other equivalent protection against mechanical damage), under minimum 3 cm of concrete. These cables are intended to be used in the power frequency of 49 Hz to 61 Hz.


Conductors: Cu annealed conductors, class 1
or class 2 according to EN 60228
Insulation: XLPE compound DIX 1
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound DMV 2

Technical characteristics

Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: 0°C
Operating temperature: -15°C to 60°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Belgium
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: NBN HD 604 S1, part 4G
Type: Industrial Cable, Power Network & Local Distribution Cable, PVC Cables
Conformitè EuropëenneIECREACHROHS
