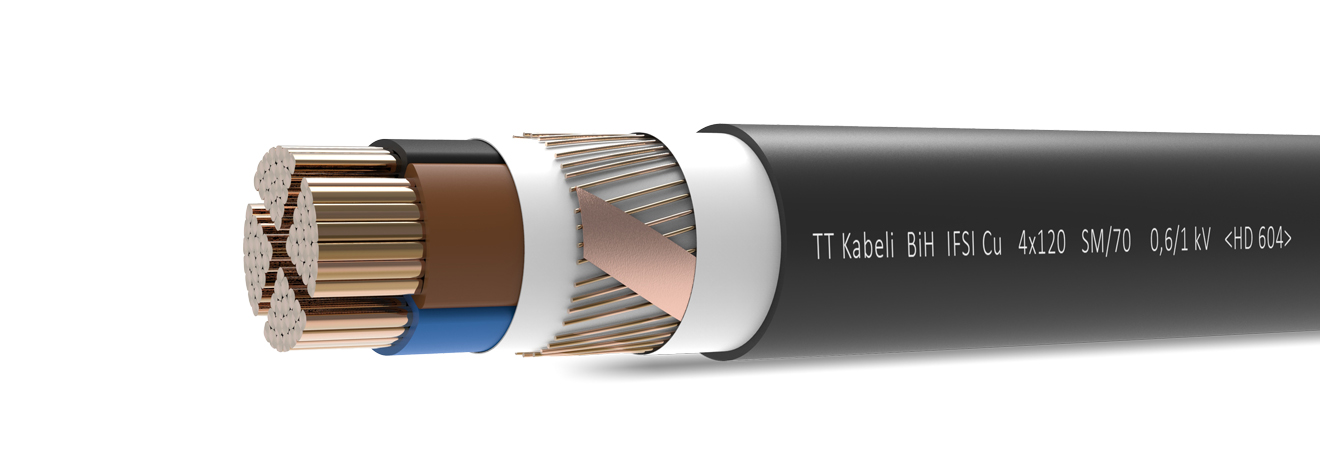

IFSI Cu

XLPE insulated and HFFR sheathed power cables with Cu conductors and copper concentric conductor, rated voltage 0,6/1 kV

Download TDS...
Download DOP...

Application

Power cable designed for fixed installation in dry and damp environment, suitable for mounting on or under plaster, on cable trays, and embedded in walls or concrete. Not intended for direct laying in ground or water. For outdoor use, the cable may be installed in conduits, provided that adequate measures are taken to prevent water ingress. Suitable for supply systems in an emergency. Appropriate for application in all situations where people and property need to be protected in case of fire. Recommended for public utility buildings with a high concentration of people such as: hotels, shopping malls, hospitals, schools, airports, underground railways, etc. and for industrial complex like power plants, transformers stations. Concentric conductor serves as electromagnetic screen, which could also be applied as neutral conductor. Expected lifetime 50 years, provided proper installation, load and ambient temperature.

Construction

Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: XLPE compound
Bedding: Extruded filling compound or plastic tape
Concentric conductor: Copper wires and copper tape helically (spirally) applied
Outer sheath: HFFR compound, UV resistant

Technical characteristics

CPR class: Dca – s2, d2, a2
Test voltage: 4 kV AC, 50 Hz, 5 min. per core
Rated voltage: 0,6/1 kV
Bending radius (min): up to 6 mm²- 6D single- core- 15D; multicore- 12D, D – overall diameter
Min. laying temperature: -15°C
Max. cond. operating temp.: 90°C
Max. short-circuit temperature: 250°C
Low smoke emitting: EN 61034-2
Halogen free: EN 60754-1; EN 60754-2
Vertical flame spread: EN IEC 60332-3-24
Flame propagation: EN 60332-1-2
CPR class: EN 50575, EN 13501-6
