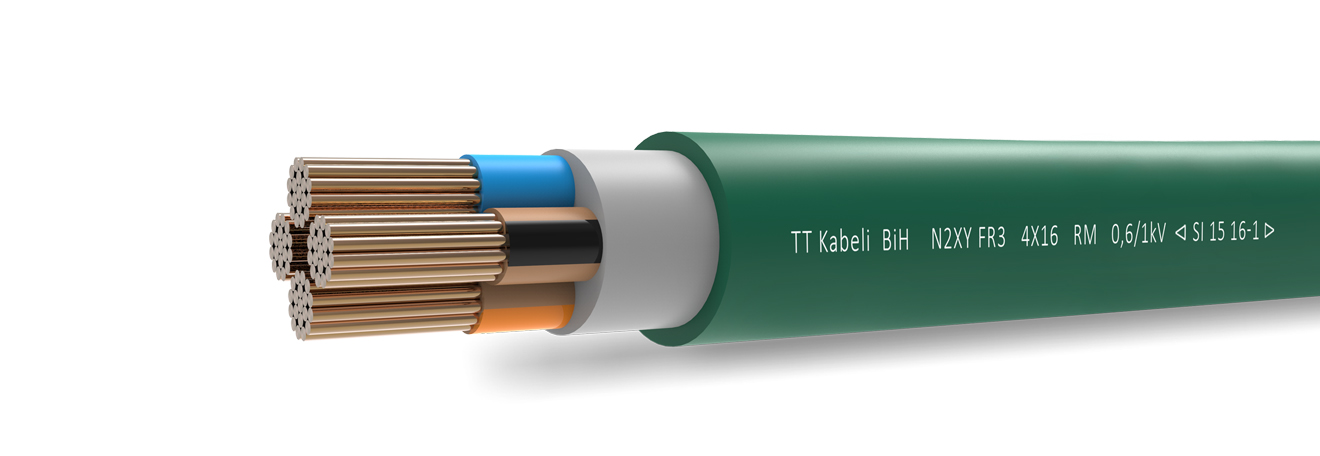

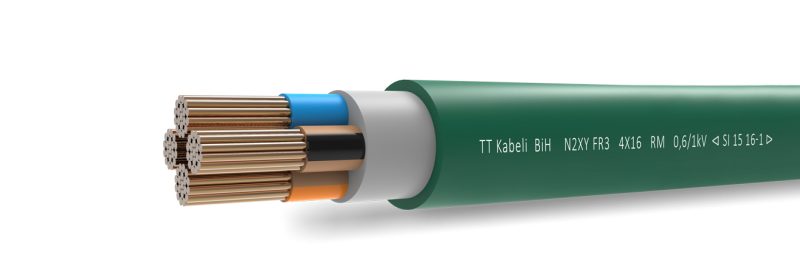

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed


In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.


Conductors: Cu, class 2 according to EN 60228
Insulation: XLPE compound DIX 3
Bedding: Extruded elastomere or plastomere compound or plastic tape
Sheath: PVC compound, fire retardant, green

Technical characteristics

Voltage rating (Uo/U): 0,6/1 kV
Testing voltage: 4 kV
Min. temp. for cable laying: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Min. bending radius: single-core – 15D; multicore – 12D
CPR class: Eca

Country: Israel
Industry: Building & Construction, Mining, Drilling & Tunnelling, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1, IS 1516-1
Type: Armoured Cable – SWA & AWA, Fire Performance Cable, Industrial Cable, Power Network & Local Distribution Cable
