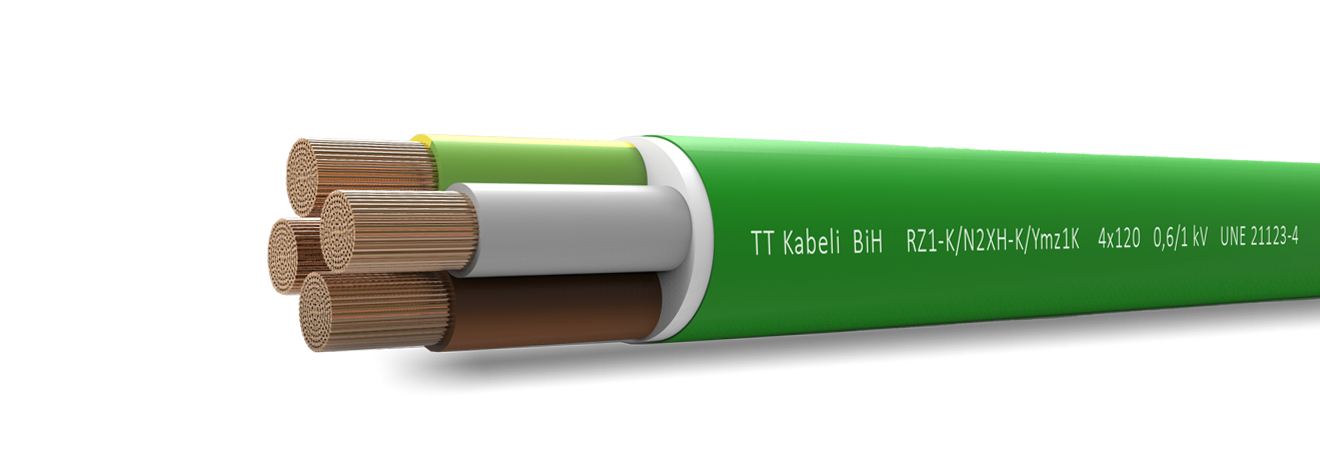

RZ1-K

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and HFFR sheathed

Application

Power cable suitable for fixed installation in dry and damp environment, on or under plaster, on cable trays, same as in walls and concrete. Not intended for direct laying in ground or water. For outdoor application can be laid in tubes, but in that case should be taken all precautionary measures necessary to prevent water penetration into the tubes. Suitable for supply systems in an emergency. Appropriate for application in all situations where people and material goods need to be protected in case of fire. Recommended for public buildings frequented by a lot of people, and for buildings of high material value, for industrial complexes, electric power plants, transformer stations, municipal facilities, hotels, shopping malls, hospitals, schools, airports, underground railways and similar. Concentric conductor serves as electromagnetic screen, which could also be applied as neutral conductor.

Construction

Conductors: Cu, class 5 according to EN 60228
Insulation: : XLPE compound, type DIX 3
Bedding: Extruded elastomere or plastomere LSZH
compound
Sheat: LSZH compound, type DMZ-E

Technical characteristics

CPR class: Cca – s1, d1, a1
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): 5xD
Min. laying temperature: -15°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Flame retardant: IEC 60332-1-2
Fire retardant: IEC 60332-3-24
Halogen free: IEC 60754
Low smoke emission: IEC 61034


Country:
Industry: Building & Construction, Mining, Drilling & Tunnelling, Transmission, Distribution & Power Networks
Standard: IEC 60502-1
Type: Fire Performance Cable, Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable
