YMvKmb

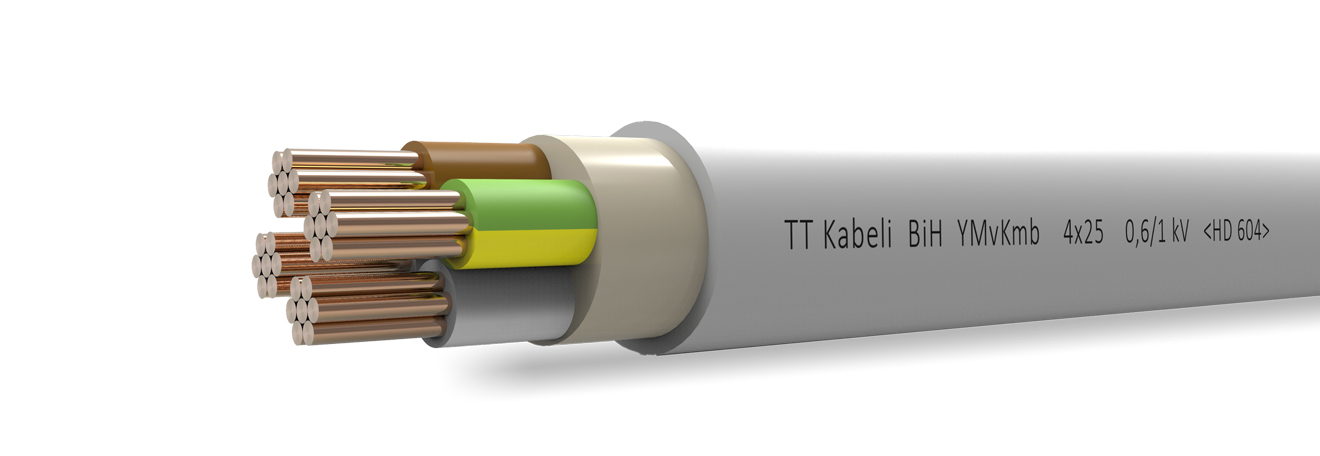

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed

APPLICATION

YMvKmb cable is suitable for all types of industrial low voltage connections, urban grids, building installations, etc. This cable is fire retardant and is recommended for use in public places and hazardous industries. This cable can also be used in buried installations or in tubes or outdoors without requiring additional protection.

Construction

Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere LSZH compound
Sheat: PVC compound, type PVC/ST

Tehnical characteristics

CPR class: Dca – s3,d1,a3
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: 0°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Netherlands
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 604 S1, IEC 60502-1
Type: Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable, Screened cables
